ELECTRONIC WEIGHBRIDGES

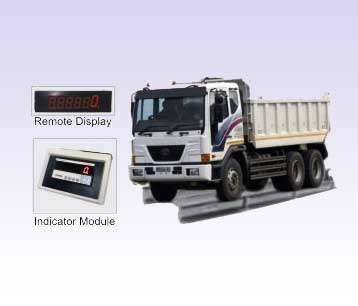

Contech offers Electronic Weighbridges from 10 ton to 150 ton in various sizes from 7.5m x 3m to 16m x 3m. These pitless Weighbridges incorporate heavy duty loadcells and rugged construction for long life. Contech Weighbridge software is ideal for effective truck management and report generation on the basis of date, time, vehicle no, Party, Material, etc.




    ELECTRONIC WEIGHBRIDGES (5kg - 100 ton)

Weighing capacity from 10T to 100T, accuracy from 5Kg to 50Kg
Different platform size 6m x 3m to 18m x 3m
Heavy duty load cells and rugged construction for long life and reliable operations
Optional Stainless Steel Hermetically Sealed Compression Loadell with
IP68 Environmental Protection
Incorporates latest Microcomputer – technology for accurate weighing
Eliminates leavers and knife edges to avoid frequent maintenance
Computerized model for effective truck management and report generation on the basis
of date, vehicle number, supplier, material, etc., on a printer

  Structure Mounted on the loadcell
  LOADCELL RC3.
Features :
Stainless steel self centering rocker, column, loadcell
with complete hermetic sealing suitable for use in
harsh ndustrial environment.
Environmental protection IP68.
Self restoring design.
High input resistance.




  Specifications

Capacity : 10 ton – 100 ton
Accuracy : 5 kg – 50 kg
Platform Size : 7.5 x 3 m – 18 x 3 m
No. of Loadcells :4 – 8 Load cells : Hermetically sealed Compression Type.
Control Unit : Microcontroller based.
Auxiliary Display : 1” LED (optional 4”)
Power supply (control unit): 100 - 270 V.AC; 50/60Hz
Power Consumption (control unit): 50 Watts
Operating Temperature : 10°C to 45°C
