Crane Scales



Contech manufactures Crane Scales for weighing upto 50 ton. Options available are remote key panel, heat shielding for high temperature application in foundries, Metallurgy and wireless remote Indicator.

Click On Image For ZOOM

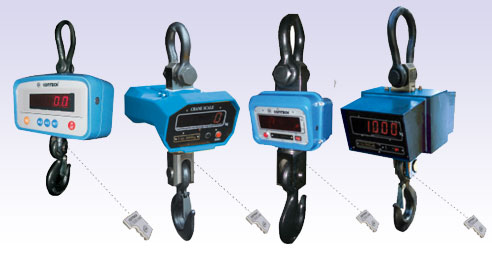

Standard Crane Scales

Rugged aluminum diecast enclosure for Models upto 20 ton.
Steel heavy duty enclosure for Models above 20 ton.
25 mm height LED display for Models upto 20 ton & 38mm height above 20 ton.
Maximum safety overload 200%.
Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)
Infrared remote keypad, operating distance 10 mtr (Optional)
RS-232 Interface (Optional)




Click On Image For ZOOM

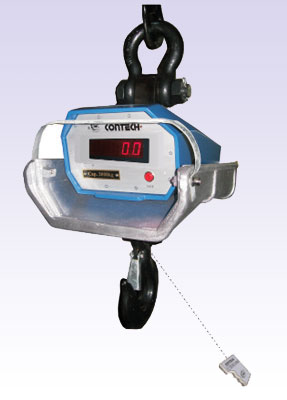

  Crane Scales With Heat Insulating Shield

Special construction for high temperature shielding.
Minimum distance for normal operation is 2 mtr for a heat radiation source at 1500°C.
Heavy duty aluminum diecast enclosure.
Bright 25 mm height LED display.
Automatic zero tracking.
Software linearity correction.



Click On Image For ZOOM

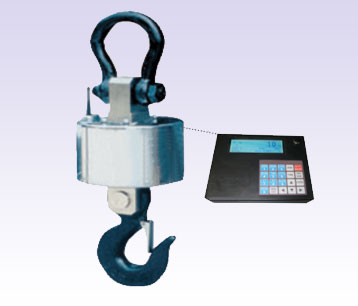

  Crane Scales With Wireless Transmission

Heavy duty steel enclosure.
Wireless transmission maximum operating distance from the Indicator is 100 mtr.
Maximum safety overload 200%.
Graphical backlite LCD display.
Battery backup
RS-232 serial interface.



Click On Image For ZOOM

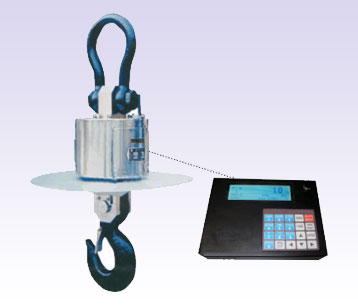

   Crane Scales With Wireless Transmission & Heat Insulating Shield
Special construction for high temperature shielding.
Minimum distance for normal operation is 2 mtr for a heat radiation source at 1500°C.
Wireless transmission maximum operating distance from the Indicator is 100 mtr.
Maximum safety overload 200%
Graphical backlite LCD display.
Software linearity correction.
